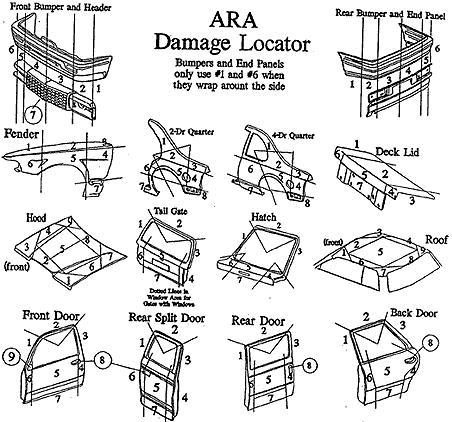

Damage Locator |
Damage Locations always follow the same pattern:
Front to back, top to bottom, left to right (as seen from driver's
seat), in an "S" pattern, with locations for door handles and mirrors.
Codes are location, damage, and units. Example: "2D1" is a one unit
dent in location 2. There may be a primary and secondary code per
part, as in "2D1,4S2". If there is no damage on a part the code is
000 (as three zeros). Zero as a location indicates the entire panel,
as in 0H4 (all over hail damage, 4 units). |
| Damage
Code Table |
| B = Burn |
C = Crease |
R = Rust on Surface |
D = Dent |
| E = Bent |
P = Parking Lot
Dings |
L = Lip |
S = Scratch on
Surface |
| H = Hail |
J = Rip or Crack |
T = Paint Problem |
|
|
|
